The Ultimate Power Nexus for Extreme Cold: High-Torque PTO Shafts for Snow Blowers

Operating a tractor-mounted snow blower introduces mechanical stresses fundamentally different from standard agricultural tilling. When a high-velocity auger ingests a solid block of subterranean ice or hidden asphalt debris, the rotational inertia generates an instantaneous, catastrophic torque spike. Furthermore, ambient temperatures dropping below -40°C (-40°F) cause standard lubricants to fossilize and conventional polymer shielding to shatter upon the slightest impact.

As a globally recognized pto shaft manufacturer, Zhejiang Jiukai Drive Shaft Co., Ltd. has entirely re-architected the materials science behind our cold-weather drivelines. By integrating a precision-calibrated Shear Bolt Yoke directly into the kinematic chain, our systems physically sever the power connection within milliseconds of an auger stall, acting as an infallible mechanical fuse that protects both the tractor’s rear axle and the implement’s reduction gearbox.

1. High-Velocity Angular Compensation

Snow blowers require massive rotational energy—frequently utilizing 540 RPM or 1000 RPM PTO outputs—to accelerate heavy, wet snow through the discharge chute. As the tractor traverses uneven, snow-packed terrain, the implement bounces. The Universal Joints (U-joints) at both extremities utilize precision cross-and-bearing kits to permit smooth, continuous torque transfer at dynamic deflection angles up to 25 degrees without inducing destructive vibrations.

2. Axial Telescopic Synchronization

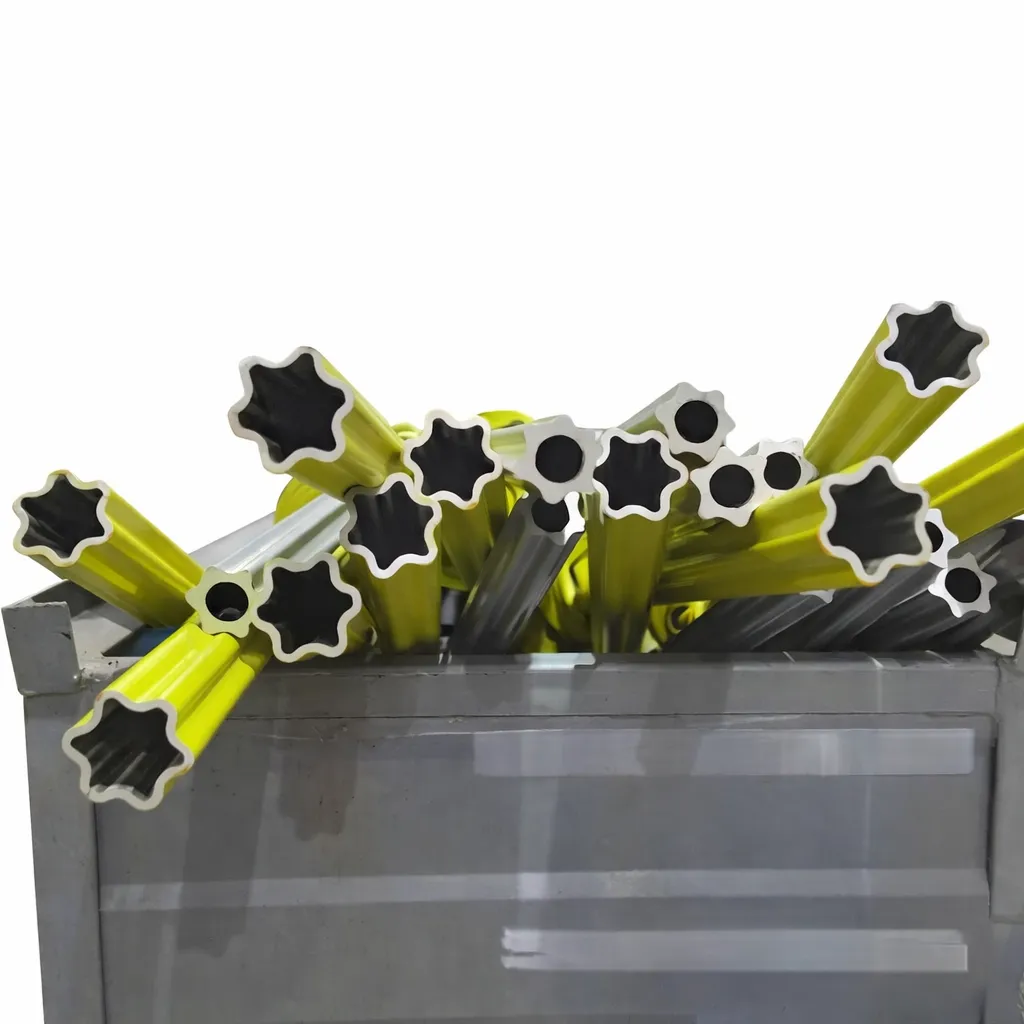

When the tractor’s three-point linkage lifts the heavy snow blower to clear curbs or lowers it to scrape pavement, the linear distance between the tractor output and the implement gearbox changes constantly. Our internal telescoping profiles (Triangular or Lemon tubes) feature a proprietary low-friction anti-galling coating. This allows the two halves to slide effortlessly under extreme torsional loads, preventing catastrophic thrust-bearing compression.

3. Instantaneous Circuit Breaking

Snow hides immovable objects. When the auger strikes a frozen fire hydrant or solid boulder, the implement stops instantly, but the 100 HP tractor engine continues pushing. The Shear Bolt mechanism acts as a mechanical fuse. The exact metallurgical grade of the bolt (e.g., Metric Grade 8.8) is calculated to shear completely in half just below the yield strength of the gearbox components, effectively disconnecting the power and saving thousands of dollars in repairs.

Precision Forged Yokes vs. Cast Iron Substitutes

Discount driveline manufacturers frequently employ gray cast iron yokes to suppress production costs. When a snow blower encounters the high-frequency percussion of pulverizing solid ice, the microscopic porosity and sand inclusions within cast iron lead to instantaneous brittle fracture. Every yoke leaving our facility utilizes 45# carbon steel under a closed-die forging process, ensuring continuous metallic grain flow and delivering tensile strength exceeding 600 MPa—more than tripling the impact resistance of cast alternatives.

All-Weather Guards vs. Brittle Plastics

Standard yellow agricultural PVC shielding becomes highly vitreous at temperatures below zero. A singular strike from a deflecting rock or ice shard will shatter it instantly, exposing the lethal high-velocity steel shaft. Our injection-molded HDPE guards incorporate a highly specialized cold-resistance modifier. Even subjected to severe blunt force trauma at -30°C, the material undergoes elastic deformation rather than fragmentation, uncompromisingly defending operator lives.

G6.3 Aviation Balancing vs. Violent Tremors

Snow throwers consistently utilize the 1000 RPM high-speed PTO setting to maximize discharge distance. At these RPMs, even microscopic variations in tube concentricity generate massive centrifugal forces. This resonant vibration acts like a jackhammer on the tractor’s rear differential seals. We subject 100% of our high-speed shafts to computerized dynamic balancing, adhering strictly to the ISO 1940 G6.3 standard, guaranteeing a vibration-free operational envelope.

🌏 Vietnam OEM Assembly Line: EAC Winter Metallurgy Compliance

Operating out of Ho Chi Minh City, a major heavy equipment OEM required drivelines for a fleet of tractor-mounted snow blowers bound directly for -35°C operations in Siberia. The tractor pto shafts we supplied successfully passed exhaustive cryogenic impact testing protocols. Furthermore, our shielding certifications aligned perfectly with the stringent Eurasian Economic Union (EAC) safety mandates, facilitating frictionless customs clearance and deployment in the Russian Far East.

🌏 Singapore Indoor Snow Centers: Zero Leakage & Absolute Silence

When grooming artificial slopes within the confined, climate-controlled environments of commercial indoor ski resorts, mechanical resonance and lubricant leakage trigger catastrophic guest complaints. To meet Singapore’s uncompromising environmental standards, we engineered a hermetically sealed, maintenance-free driveline. The G6.3 dynamic balancing entirely eradicates low-frequency drumming noise, ensuring stealth operations during facility operating hours.

🌏 Malaysian Fabrication Networks: Meeting Japanese 1000 RPM Standards

Contract manufacturing facilities in Malaysia process massive volumes of snowblower attachments destined for Japan’s snowy northern prefectures. Navigating the Japanese market’s extreme scrutiny regarding the stability of 1000 RPM high-speed applications, our 21-spline drive systems delivered near-perfect concentricity parameters, earning distinct commendations from embedded Japanese quality control auditors.

Targeted Installation Protocol for Snow Blowers

Improper sizing resulting in the shaft “bottoming out” (fully compressing without clearance) is the leading cause of annihilated gearbox bearings in snow equipment.

1. Directional Orientation Verification: The yoke end integrated with the Shear Bolt must be rigidly affixed to the input shaft of the snow blower gearbox. The opposite end, utilizing the quick-disconnect pin, attaches to the tractor. Reversing this orientation causes the massive steel shaft to whip violently if the shear bolt breaks.
2. Measuring the Minimum Operational Distance: Raise or lower the snow blower utilizing the 3-point hitch until the implement input shaft and tractor PTO stub are perfectly horizontal (forming a straight line). This represents the shortest possible kinematic distance. Separate the driveline halves, hold them parallel to the mounting points, and measure. A minimum of 30mm (1.2 inches) of clearance must remain before the tubes bottom out.
3. Simultaneous Trimming & Deburring: If the assembly is too long, use an angle grinder to remove identical lengths from the inner steel tube, the outer steel tube, and both halves of the plastic guard. Meticulously file all interior and exterior burrs. Generously coat the inner tube profile with synthetic arctic-grade grease. Do not use standard yellow grease, which solidifies in winter.
4. Anchoring the Safety Apparatus: Secure the anti-rotation chains located on both ends of the guard to stationary points on the tractor chassis and implement frame. Ensure slack is present so chains do not snap during lifting.

Operational Diagnostics & Rapid Repair Solutions

🇷🇺 Vladivostok Port, Russia

Application: Heavy-duty municipal staging areas.

“Operating directly on the coast introduces a brutal mix of extreme cold and saltwater vapor. The client’s existing inner tube grease was continuously freezing into solid ice blocks, resulting in bent tubes during implement lifting. Based on this exclusive data, we implemented an electrophoretic e-coating combined with a Teflon (PTFE) bonded surface on the tubes, entirely eliminating the reliance on traditional wet grease. The client stated: ‘This is the most fluid driveline system deployed in the Far East.'”

🇯🇵 Hokkaido Municipal Fleet, Japan

Application: Continuous 14-hour blizzard clearing shifts.

“With massive, relentless snowfall, these tractors run hot while the external components sit at -25°C. The fleet director cited severe issues with brittle Italian-made PVC guards fracturing from minor ice impacts. Leveraging our factory’s polymer lab, we transitioned them to our cryogenic-modified HDPE shields coupled with triple-lip sealed cross bearings. Over a three-year continuous tracking period, the fleet reported exactly zero shattered guards.”

🇨🇦 Quebec Forestry Roads, Canada

Application: Logging paths embedded with frozen granite.

“Submerged granite chunks are the apex predator for snow blowers. The client was utilizing standard agricultural slip clutches, which glazed over and burned up instantly upon hitting rocks due to the massive inertia. We forcibly mandated a switch to our Series 8 heavy-duty shaft, equipped exclusively with a high-tensile 12.9 flanged shear bolt system. It successfully intercepted every lethal torque wave, sacrificing a $2 bolt instead of a $4,000 transmission.”

🇰🇷 Gangwon-do Ski Resort, South Korea

Application: Steep-incline slope grooming.

“Snowcats dragging heavy rear blowers up steep inclines create articulation angles that far exceed standard 25° PTO limits. U-joints were binding and exploding. We engineered a bespoke Wide Angle Constant Velocity (CV) Joint driveline for their specific tractor fleet. It effortlessly accommodated 80° deflection angles under load, entirely resolving the mechanical binding and vibration anomalies.”

🇸🇬 Snow City, Singapore

Application: Commercial indoor theme park maintenance.

“An incredibly unique parameter set: The facility demands zero acoustic resonance and absolute zero tolerance for grease leakage on pristine artificial snow. We delivered an ultra-premium driveline subjected to G6.3 aviation-grade dynamic balancing, utilizing hermetically sealed medical-grade Viton lip seals. The operations manager reported: ‘During late-night grooming, aside from the hum of the electric tractor, the driveline is completely imperceptible.'”

The Invulnerable Torque Redirector: Agricultural Gearbox

Delivering power via the PTO shaft is only half the equation; redirecting that energy 90 degrees to drive the snow-crushing augers requires an impenetrable transmission unit. We manufacture specialized right-angle bevel gearboxes tailored exclusively for the extreme environments of snow removal. The housings are poured from QT450-10 nodular ductile iron, designed to absorb kinetic recoil without suffering hairline case fractures.

Internally, the core bevel gears are machined from 20CrMnTi alloy steel and carburized for maximum surface hardness while maintaining a ductile core. By sourcing both the driveline and the gearbox from our unified manufacturing hub, OEMs eliminate spline tolerance stacking, ensuring 100% concentric power transfer and drastically reducing warranty claims.
